Basic commands (Live section)
The command activates the Section funcitonality: this is a powerful tool to see, evaluate and measure the models open in Bly.

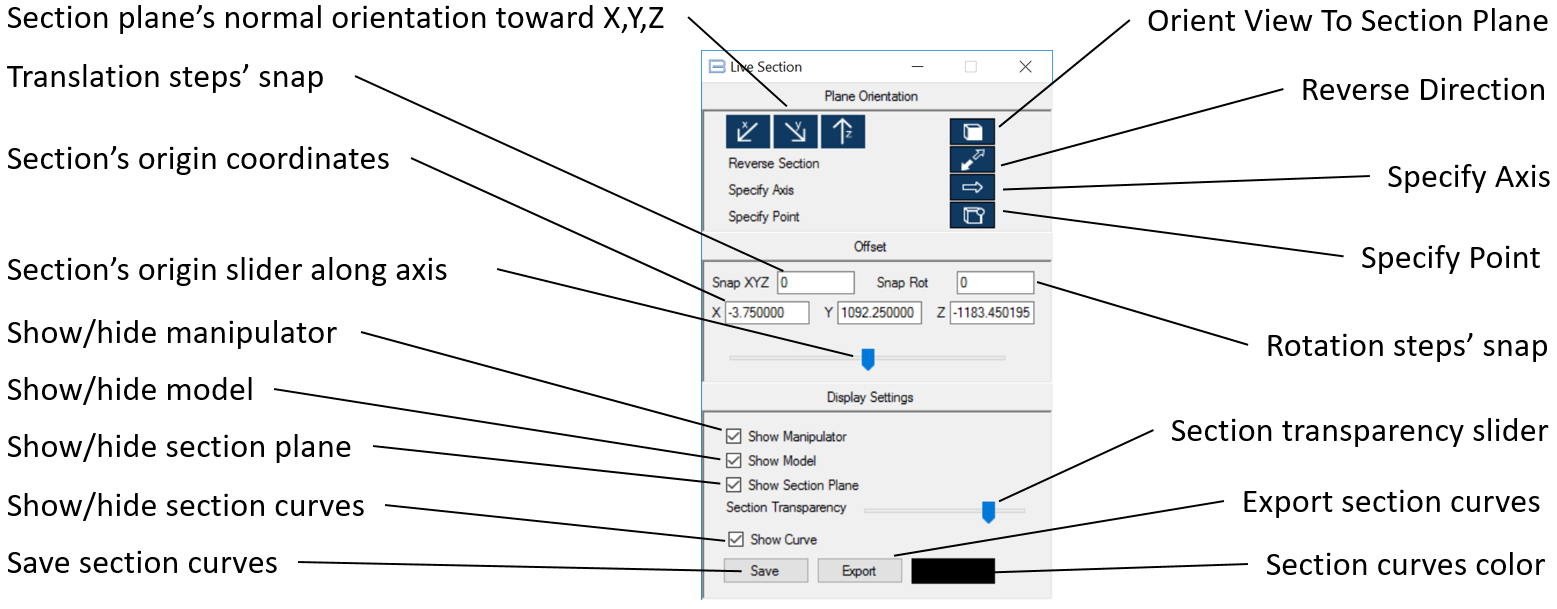

Here below you find the panel's functions description.
Reverse direction ![](lib/NewItem313.png)
It flips the section's plane normal (axis), reversing the section's side.

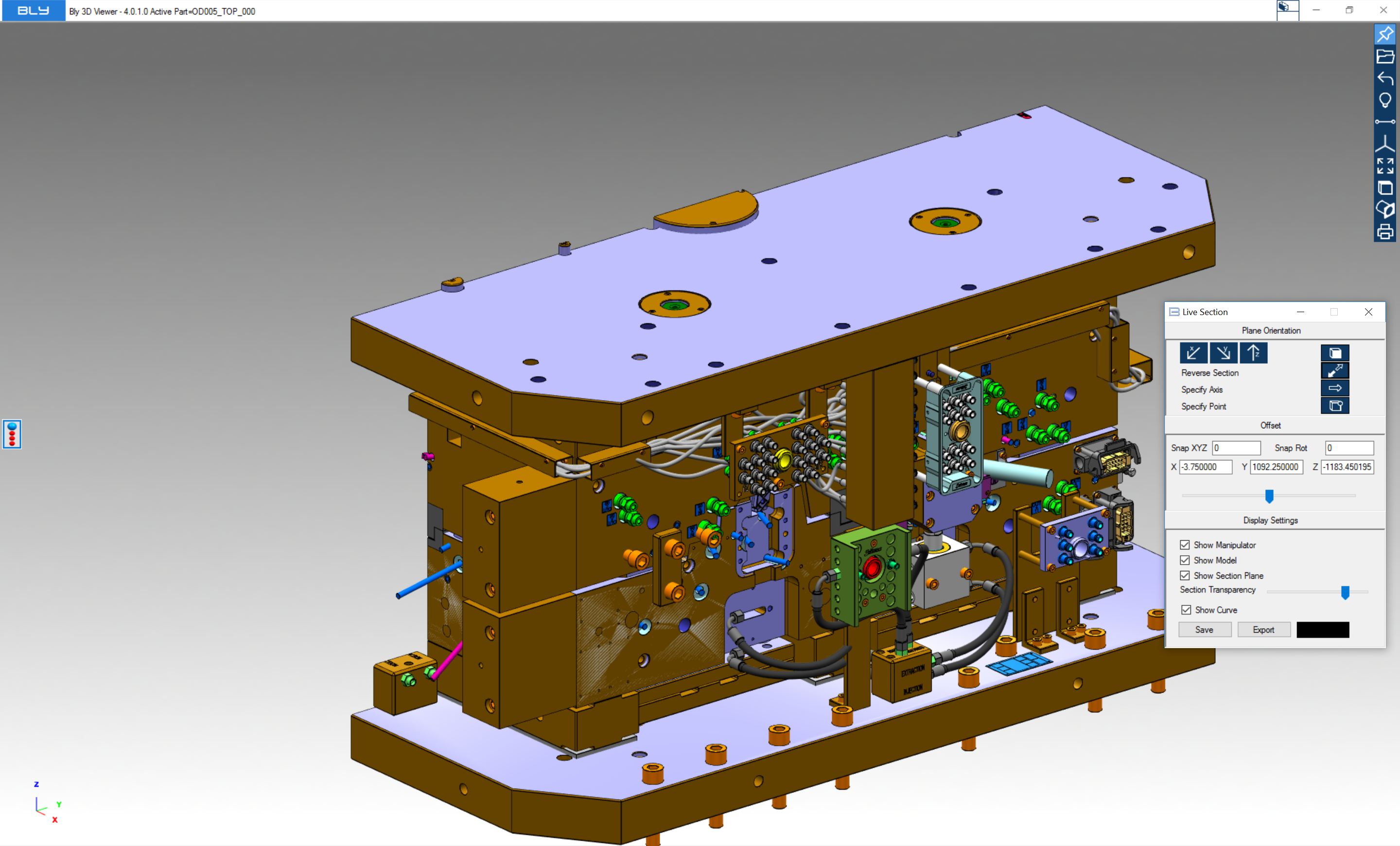

Original section

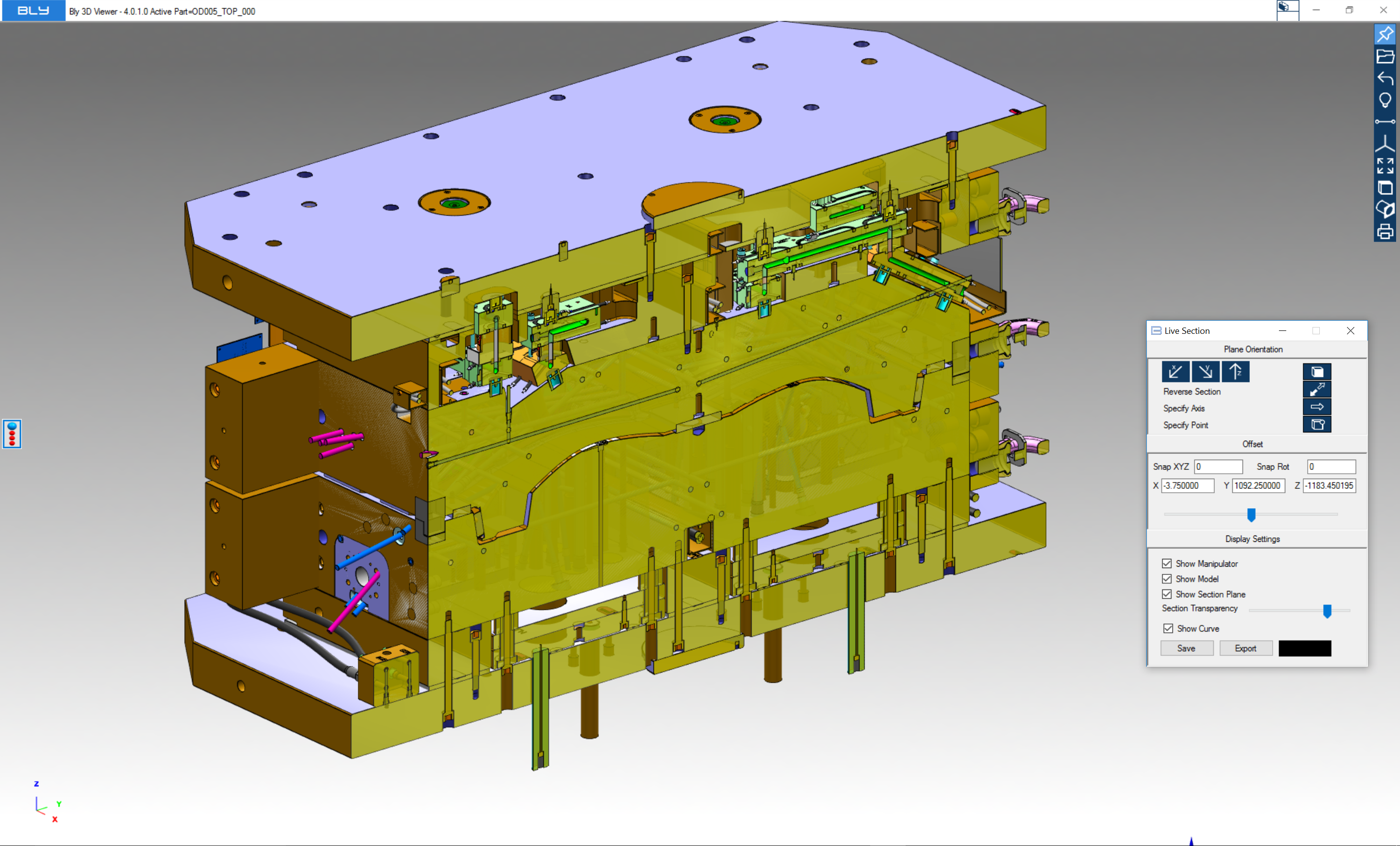

Reverse section
Specify section's normal (axis) ![](lib/NewItem315.png)

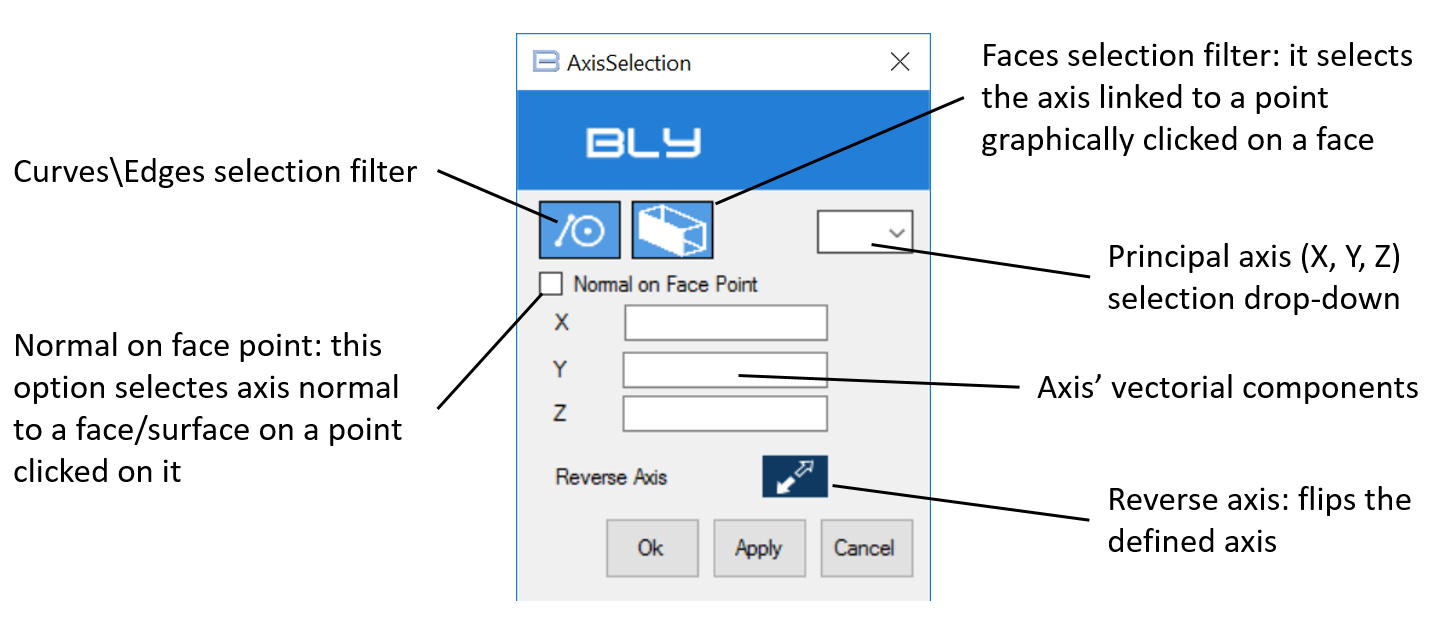

This option specifies a section axis via AxisSelection panel
Specify section's origin (point) ![](lib/NewItem317.png)

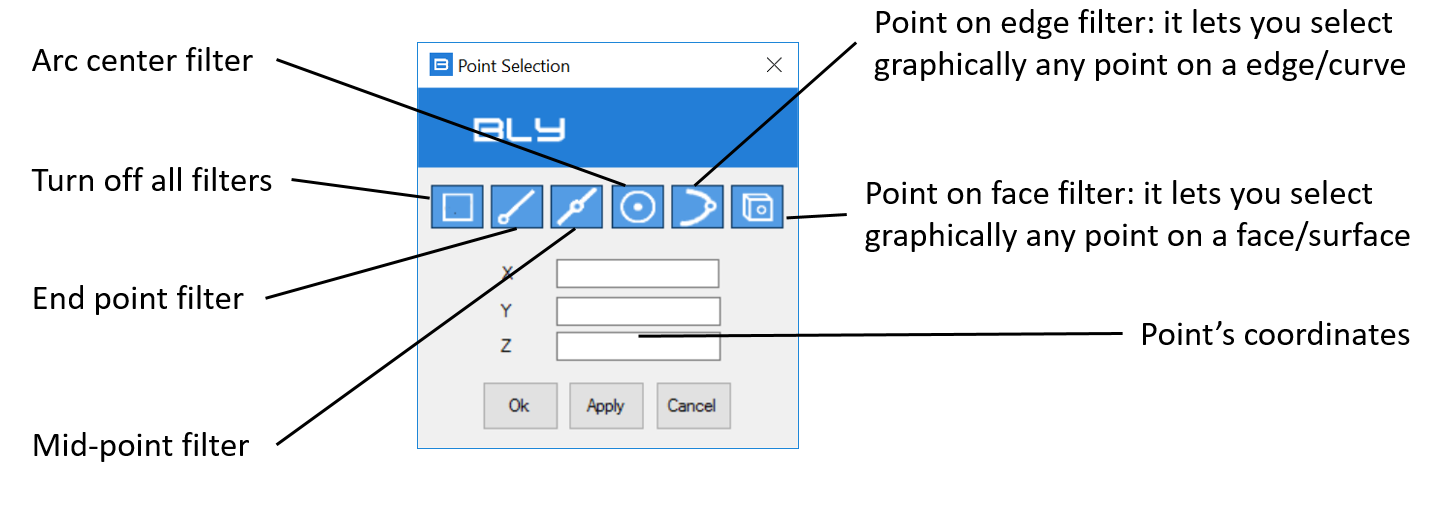

This option lets you select a point the section plane pass through.
Save ![](lib/NewItem87.png)

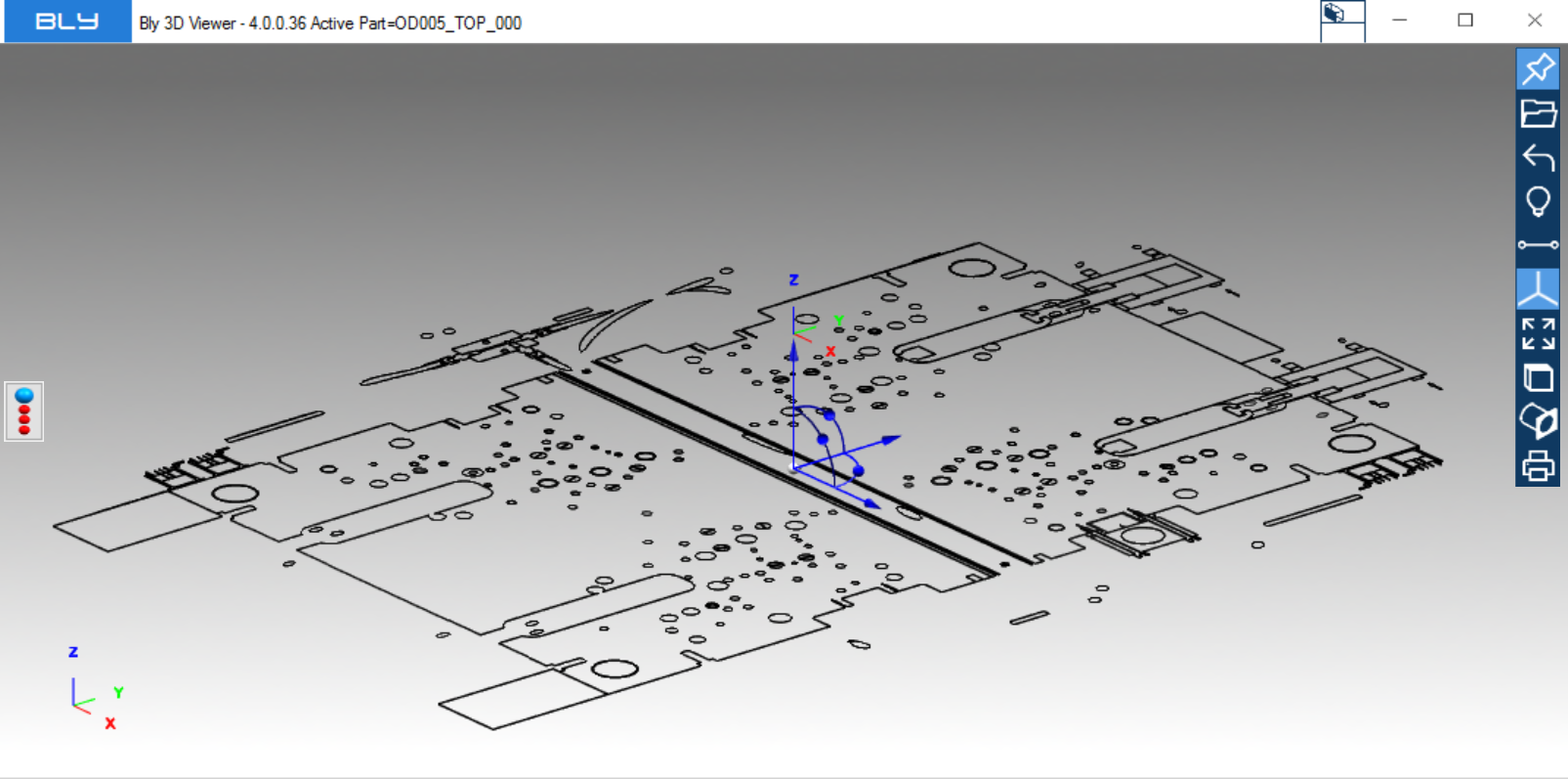

It creates curves retracing section edges. Curves are objects that remain visible if the model isa blank (see picture) and can be then exported (see below)
Export ![](lib/NewItem88.png)
This option exports section curves previously created in a bly file that can be reopened afterwards.
